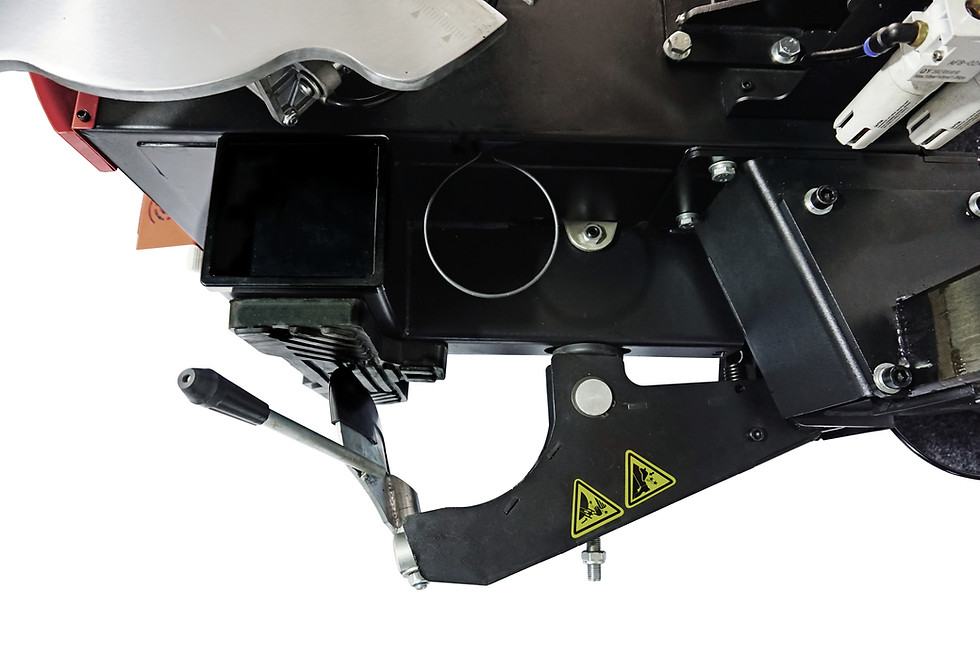

Tire Changer 816BM
FEATURES
Enhanced S41 hexagon shaft with better intensity to avoid mechanical deformation during working.
Clamping jaw is equipped witg a protective sleeve to provide more comprehensive protection for the tires and rims .
Equipped with mechanical arm which makes mounting and demounting tire more quicker and easier.
The clamping jaw is made of precision steel cast which is firm and durabie.
Base of mechanical arm is a complete one set,inside with wear-resistant macromolecule nylon slide block, toachieve smootg operating.
The structure desihn is novel, the layout is reasonable, In order to use more flexible and convenient.
Specifications
Rim cIamp from outside 12"- 22"
Rim cIamp from inside 14"- 24"
Max wheeI diameter 980mm
Max tire width 12"
Working pressure 8-10bar
VoItage 380V/220V/110V
power 0.75KW/1.1KW
Machine size 1600×1450×1870mm
CompIete machine packing size 1220×950×1710mm
Net weight/Gross weight 298KG/344KG
